Regenerative Thermal Oxidizer Maintenance
Regular RTO maintenance helps identify developing problems before they lead to unplanned downtime, reduced performance, or more expensive repairs. Knowing what to watch for can help your plant stay ahead of problems and keep your oxidizer operating reliably.
Why RTO Maintenance Matters
Regenerative thermal oxidizers operate in demanding conditions involving high temperatures, repeated valve cycling, process contaminants, fans, burners, controls, and ceramic heat recovery media. Over time, normal wear and changing process conditions can affect individual components and overall system performance.
Many RTO problems develop gradually. Changes in pressure, temperature, airflow, vibration, valve operation, insulation condition, or media condition can provide early indications that maintenance is needed. Routine monitoring and planned inspections give maintenance teams an opportunity to address those issues before they become larger problems.
Signs Your RTO May Need Maintenance
Every system and process is different, but changes from normal operating conditions are often the first indication that an RTO should be inspected.
Changing Pressure or Airflow
Increasing pressure drop, airflow changes, or difficulty maintaining normal operating pressure can indicate restrictions, buildup, fan issues, or other developing conditions.
Abnormal Temperature Trends
Changes in temperature profiles, difficulty maintaining operating temperature, or unusual temperature differences can indicate that the system is no longer operating as expected.
Recurring Alarms or Faults
Repeated alarms, intermittent shutdowns, or recurring faults should be documented and investigated rather than repeatedly reset without determining the underlying cause.
Fan Vibration or Noise
New vibration, unusual noise, or changes in fan performance can be early indicators of alignment, bearing, buildup, or other mechanical issues.
Valve or Damper Problems
Slow movement, inconsistent cycling, leakage, or position feedback problems can affect airflow through the oxidizer and should be investigated.
Visible Hot Spots or Deterioration
Exterior hot spots, damaged insulation, deteriorating ductwork, leaks, corrosion, or other visible changes can indicate maintenance needs inside or outside the system.
Common RTO Maintenance Issues
Some maintenance problems are visible during routine checks while others are discovered during a planned internal inspection. Catching deterioration early can turn an unexpected repair into scheduled maintenance.

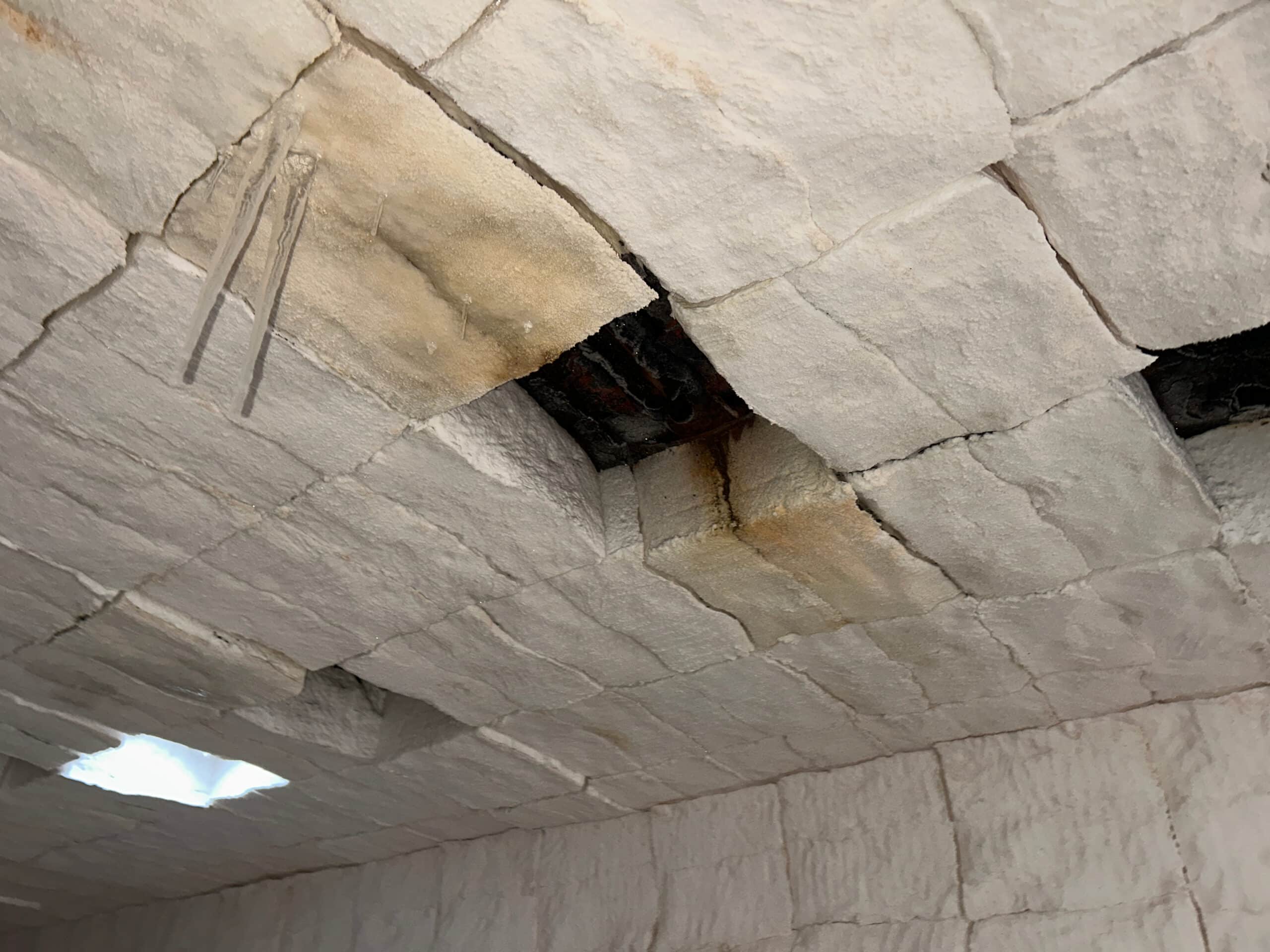

Insulation & Refractory Damage
High-temperature insulation can deteriorate over time. Cracking, damaged sections, or developing hot spots should be evaluated before deterioration progresses into a larger repair.

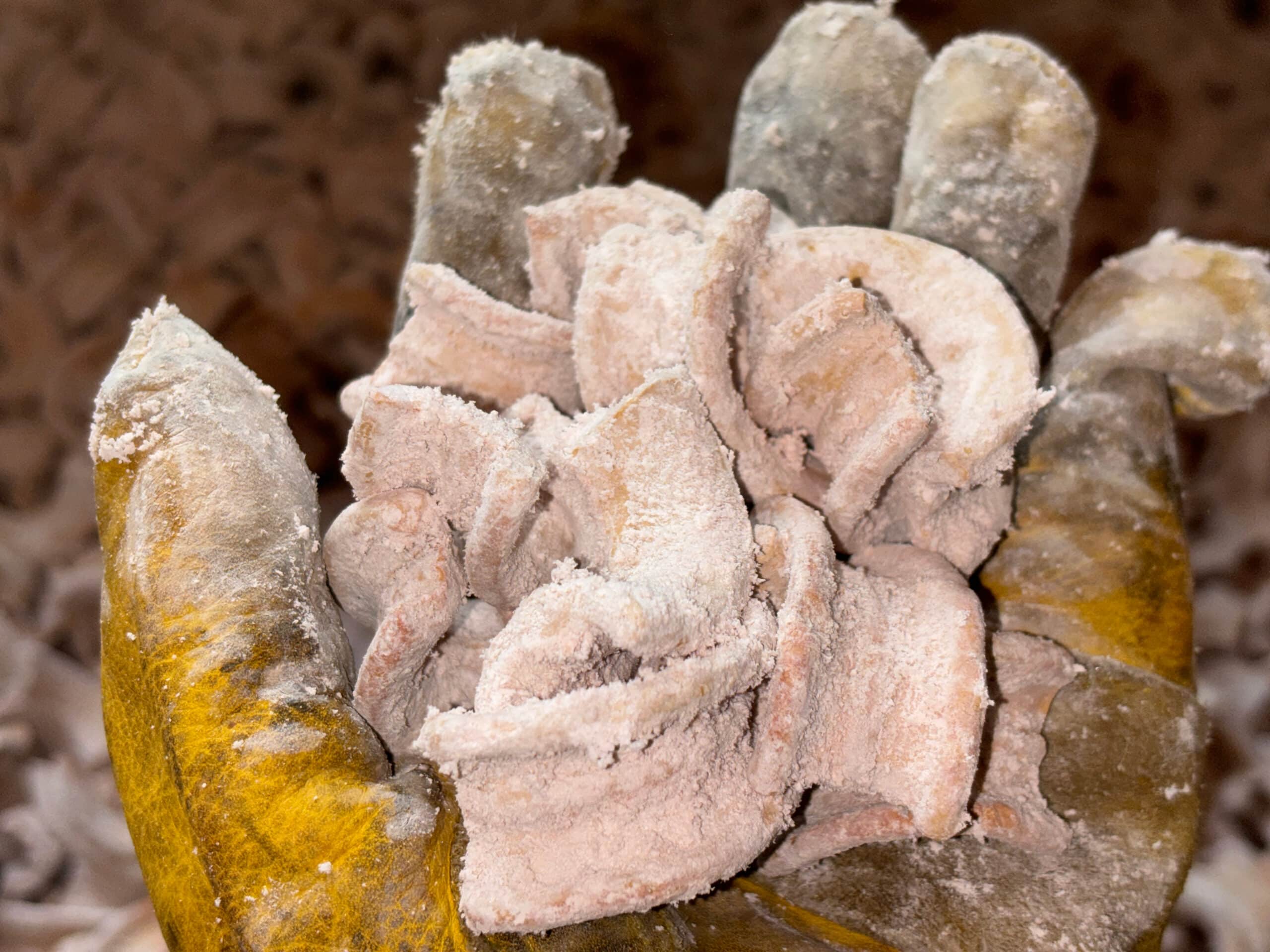

Ceramic Media Fouling
Process material can accumulate on ceramic heat recovery media. Fouling, damaged media, or excessive buildup can restrict airflow and affect the performance of the heat recovery beds.

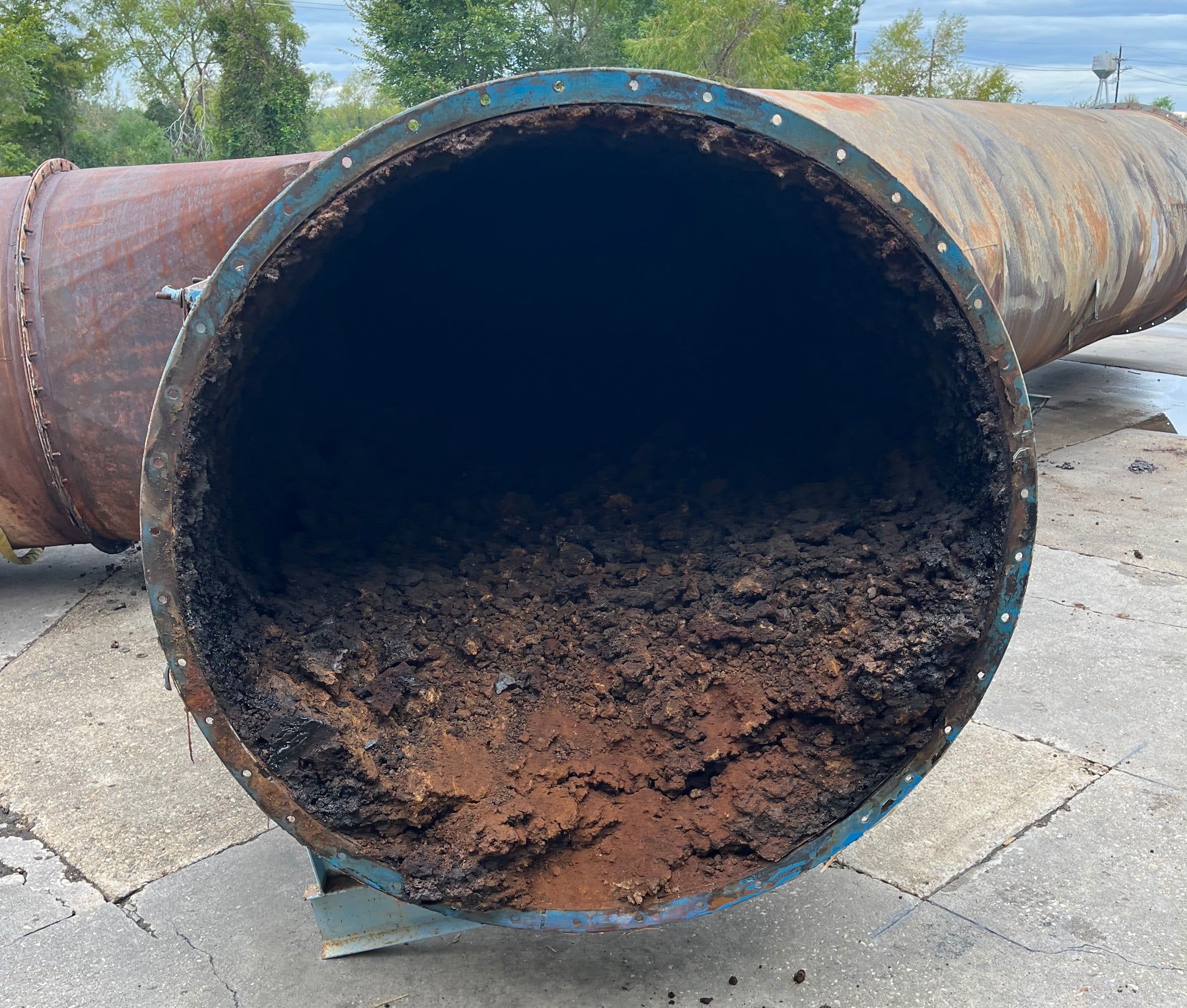

Ductwork & Process Buildup
Process deposits and contamination can accumulate throughout ductwork and other areas of the system. Routine inspection can identify buildup, leakage, corrosion, or deterioration that may require cleaning or repair.
What Should Be Included in an RTO Maintenance Program?
Maintenance requirements vary by oxidizer design, process, operating conditions, and equipment history. Your system's operation and maintenance manual should always be the primary reference for specific maintenance requirements and intervals. In general, a strong maintenance program combines routine plant monitoring with periodic professional inspections.
Between Service Visits
Plant personnel should monitor normal operating conditions and document meaningful changes over time. Depending on the system, routine checks may include:
- Operating temperature and setpoint
- System pressure and airflow conditions
- Alarms, faults, and shutdown history
- General equipment condition
- Fan operation and unusual vibration or noise
- Visible leaks, hot spots, or exterior deterioration
- Routine lubrication and component checks specified by the equipment O&M manual
During Planned Inspections
A planned inspection allows trained technicians to evaluate areas that cannot be adequately assessed during normal daily operation.
- Ceramic media and heat recovery areas
- Poppet valves and dampers
- Process and combustion fans
- Burner and gas train components
- Thermocouples and instrumentation
- Ductwork and insulation
- Controls and safety devices
- Overall mechanical and structural condition
RTO Maintenance Goes Beyond One Component
An RTO depends on multiple mechanical, combustion, airflow, heat recovery, and control systems working together. A problem in one area can affect the operation of the entire system.

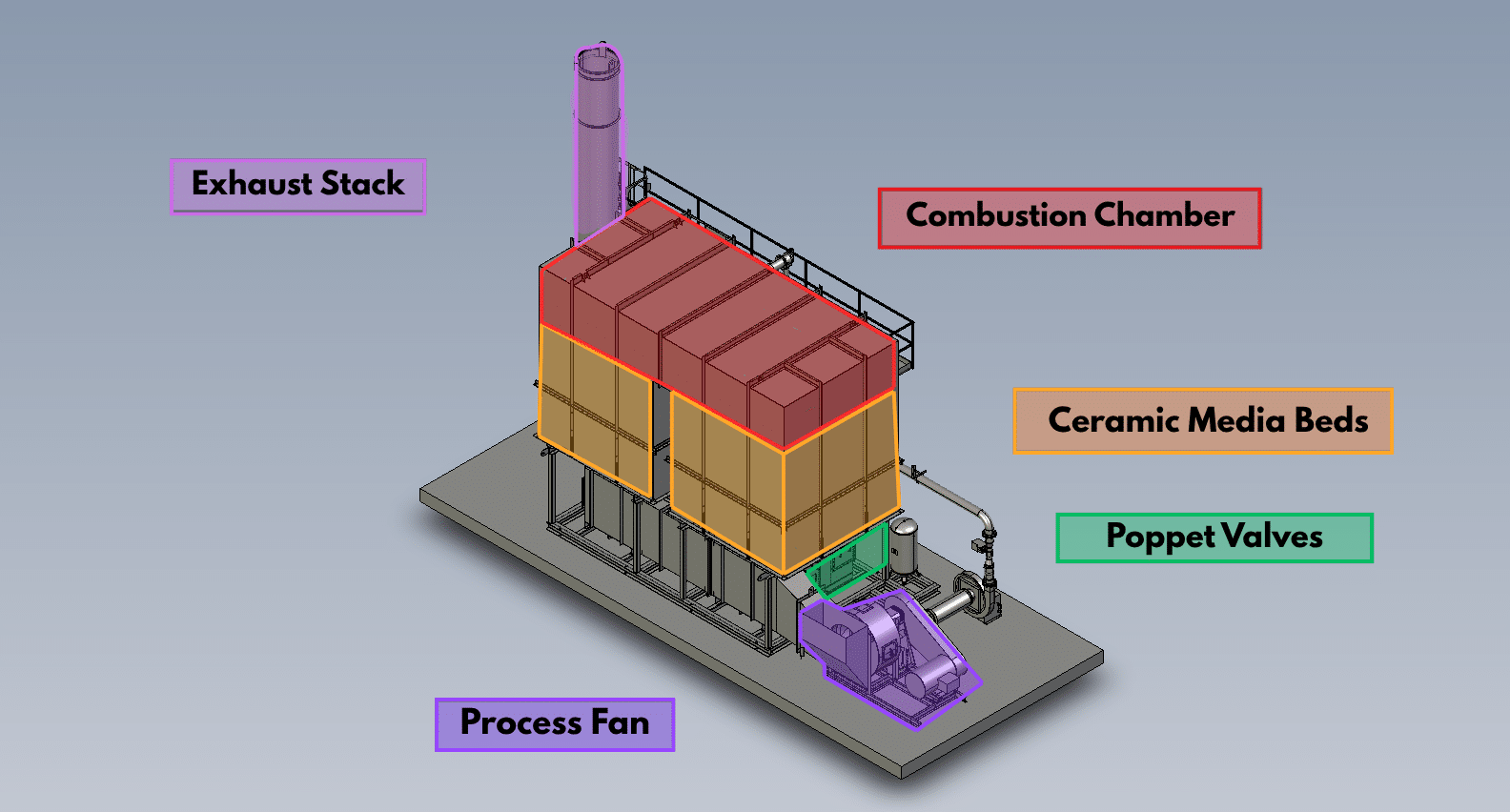

Ceramic media beds, poppet valves, the combustion chamber, process fan, exhaust system, burner, controls, ductwork, and instrumentation all play a role in reliable operation. Effective preventative maintenance looks at the oxidizer as a complete system rather than focusing only on the component showing the most obvious symptom.
Key RTO Components to Include in a Maintenance Program
An RTO operates as an interconnected system. A change in one area can affect airflow, temperature, heat recovery, emissions performance or the operation of other components. Effective maintenance should consider the condition of the entire oxidizer rather than focusing on a single component.
Ceramic Media & Cold Face
Fouling, particulate buildup, damaged or shifted media and deterioration of the cold-face support system can affect airflow and heat recovery. Changes in pressure or thermal performance can be signs that the media system deserves closer inspection.
Poppet Valves & Dampers
RTO valves cycle continuously during operation. Air leakage, hesitation, incomplete movement, abnormal switching or recurring position faults can indicate wear or problems within the valve, actuator or control system.
Process & Combustion Fans
Fans should be monitored for changes in vibration, noise and operating behavior. Bearing or coupling wear, wheel buildup, airflow restrictions and other mechanical conditions can affect both fan performance and the operation of the overall system.
Burner & Gas Train
Reliable combustion depends on the burner, ignition system, flame detection, combustion-air system and gas train working together. Recurring ignition faults, unstable temperatures or changes in burner behavior should not be treated as isolated symptoms.
Controls & Instrumentation
Thermocouples, pressure instrumentation, switches, PLC controls and the HMI provide the information the RTO uses to operate safely and reliably. Faulty instrumentation or aging control components can create misleading readings, nuisance faults and increased downtime risk.
Insulation, Refractory & Structure
Hot spots, discoloration, damaged insulation, deteriorating refractory, air leakage and structural damage can develop gradually. Exterior condition and operating trends can provide clues that internal inspection is warranted.
Ductwork & Process Buildup
Deposits, corrosion, leakage and physical damage within the duct system can increase resistance or change process airflow. Ductwork should be considered part of the RTO system rather than equipment that ends at the oxidizer inlet.
Safety Devices
Flame safeguards, pressure switches, temperature limits and other safety devices protect the oxidizer and surrounding process. Their condition and operation should be included in planned maintenance and inspection activities.
Overall System Performance
Temperature, pressure, airflow, fuel use, alarm history and heat-recovery behavior should be viewed together. Gradual changes in these trends can reveal developing maintenance needs even when the RTO continues to run.
Preventative Maintenance or Emergency Service?
The condition of the equipment determines the next step.
Your RTO Is Running, But Something Is Changing
Changes in operating conditions, developing hot spots, increasing vibration, recurring faults, buildup, or visible deterioration are good reasons to schedule an inspection before they become larger problems.
Preventative Maintenance Inspections βYour RTO Is Faulted or Down
When an oxidizer is experiencing an active problem or unexpected shutdown, TANN's technical service team can help troubleshoot the system remotely or coordinate an on-site service visit when needed.
Troubleshooting & Emergency Service βComplete RTO Service, From Inspection Through Repair
Identifying a maintenance issue is only the first step. TANN supports regenerative thermal oxidizers across the complete system, with technicians backed by the engineering and manufacturing capabilities used to design, build, rebuild and service industrial air pollution control equipment.
TANN can service virtually all makes and models of regenerative thermal and catalytic oxidizers, whether the system was originally manufactured by TANN or another OEM.
Mechanical & Equipment Service
From individual component repairs to larger mechanical work, TANN can address maintenance needs throughout the oxidizer and connected equipment.
- Ceramic media replacement and upgrades
- Insulation and refractory repairs
- Valve and damper service
- Fan and mechanical repairs
- Ductwork and equipment repairs
- Mechanical rebuilds
Diagnostics & System Evaluation
When the cause of a developing problem is not obvious, evaluating the system as a whole can help identify maintenance priorities and reduce unnecessary repairs.
- Comprehensive RTO inspections
- Thermal imaging
- Vibration analysis
- Ceramic media health evaluation
- Remote diagnosis and technical support
- System and performance evaluation
Engineering & System Upgrades
Maintenance findings can also reveal opportunities to address aging components, recurring problems or equipment that no longer matches current process requirements.
- Controls and VFD upgrades
- Burner and gas train systems
- Valve repairs and upgrades
- Ductwork, dampers and collection systems
- Mechanical rebuilds and equipment upgrades
- Engineering studies
Need help with an RTO maintenance issue? Whether you're planning maintenance, investigating a developing problem or dealing with an unexpected shutdown, TANN can help evaluate the system and determine the appropriate next steps.
